Persamaan Trafo Flyback TV

Author - Mitra Cendikia
Desember 30, 2022

 Memahami fungsi kaki kaki atau pin flyback tv dan melihat data persamaan flyback tv terlengkap untuk berbagai merk tv tabung atau crt.



Persamaan menjadi sebuah solusi untuk mengganti flyback aslinya yang rusak dan sudah sulit di dapatkan di pasaran.

menghitung urutan kaki pin flyback tv

Pin out flyback di PCB TV

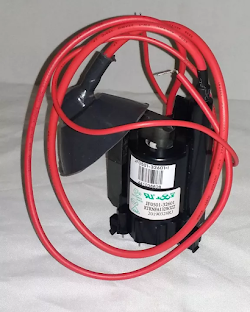

flyback tv sharp tabung original_JF0501_32601

Gambar pin flyback di Skema

Untuk urutan nomor kaki flyback di hitung dari kanan ke kiri searah jarum jam seperti pada gambar flyback diatas.

Dibawah ini adalah kumpulan pinout dan persamaan flyback berbagai merk TV tabung :

  1. F 0101KM-SA / F 0141 PE-M
    C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl
  2. 154-064P / 154-177B / FCK-14B047
    C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
  3. FCG 2045 BL
    Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v
  4. JF 0501-1206
    C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
  5. JF0601-19577(polytron)
    C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12
  6. FSA 16012M /DCF 2077A / DCF 1577 / FSA 16012M
    C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater
  7. FCK 14A006 / FCM 2015HE / FCM 14A032
    C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl
  8. FCK 1411 L 01 / FCM 14A025
    C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v
  9. 154 189H / 154 277C / FCM 20B027
    C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc
  10. FCM-20B061N (polytron)
    C_B+_gnd_185_nc_Ht_Nc_abl_+12_-12
  11. FUY-20C009 (akari)
    C_180_B+_gnd_nc_24_nc_abl_Ht_afc
Lihat kumpulan Flyback TV AKARI Lengkap
  1. BSC 65A
    C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc
  2. 154 – 132A / 154 – 132C
    C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
  3. MC – FBC-015 / LCE CF0854
    C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
  4. 8-598-858–00 / 8-598-811
    C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl
  5. TFB 4125 DY (thosiba) / TFB 4125 HY
    C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc
  6. FSV – 20A001 / FCK – 14A033 / FSV – 14A001
    C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
  7. FTK-14A004P (Samsung)
    C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5
  8. BSC 24-01N4014K / BSC 25-T1010A /BSC 25-09N21A /BSC 25-05N2110A /BSC 25-09N20E
    Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v
  9. DCF 2217J
    C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater

BSC 22-01-06 / BSC 25-48 / BSC 25-4803 / BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

FUY-20C009 (AKARI)
COL _ 180V _ B+ _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC

FSV – 20A001 / FCK – 14A033 / FSV – 14A001 (AKARI)
C _ B+ _ 125V _ ABL _ NC _ GND _ 185V _ 46V _ H _ NC _ 16,5V

BSC22 – 01N401 / BSC24 – 01N40TA / BSC25 – 1194 / BSC25 – 4803T / BSC22 – 2007 (B+125) / BSC25-N0803A (AKARI / FUJITEC)
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ NC

JF0501 – 1901 / BSC23 – N0114 (AKARI)
COL _ B+115V _ GND _ 185V _ H _ ABL _ GND _ 16V _ NC _ 24V

JF0501 – 19959 / BSC25 – 0235A / BSC25-4004A / BSC25-N 0103 / BSC24-01N4004U (AKIRA)
COL _ B+115V _ +14V _ -14V _ GND _ H _ AFC _ ABL _ NC _ 185V

CT-29TK9AE / JF0501-2202 (AKIRA)
Col _ B+125v _ Afc/Nc _ -12v _ +12v _ Gnd _ H _ Abl _ Gnd _ 180v

BSC29-N2477 (AKIRA SLIM)
Col _ 180v _ B+130v _ Gnd _ Nc(14v) _ 25v _ Nc(Gnd) _ Abl _ H _ Inner

IC 8893CPBNG / BSC25 – 05N2135H / BSC25 – N0379 / BSC25 – 3604V (AKIRA FUJITEC)
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ 180V

BSC22-68F03 / BSC25-N0449 (AKIRA FUJITEC)
COL _ B+115V _ 24v _ AFC _ GND _ H _ ABL _ 180V

BSC22 – 2314 / HJF0501-1903 / FCM14A032 / KFS 60844 (FUJITEC)
COL _ B+115V _ 180V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC

BSC 25 Z 603F / BSC 25 – 4813A / BSC 25 – N1003A / BSC25 – N0608 (CHINA)
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ NC(180V)

BSC24-014001D / BSC25-N0321 / BSC25-N1534 / BSC25-N1634 / BSC25-Z1003 / BSC25-Z2705 / BSC25-Z2706 / BSC25-N0313 / BSC25-F1125A (TV CHINA)
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ AFC

BSC 25 – 2004PR (TV CHINA)
COL _ B+115v _ NC _ AFC _ GND _ H _ ABL _ NC _ TP1 _ TP2

BSC24-01N4014K / BSC25-T1010A (TV CHINA)
T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V

BSC26 – 3606A (TV CHINA)
Col _ B+115V _ NC _ AFC _ GND _ H _ ABL _ T1 _ T2 _ T3

BSC 24-01N4014K / BSC 25-T1010A / BSC 25-09N21A / BSC 25-05N2110A / BSC 25-09N20E (TV CHINA)
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v

BSC 22-01-06 / BSC 25-48 / BSC 25-4803 / BSC 24-01N362 (TV CHINA)
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

BSC28 – N2329 (TV CHINA)
Col _ TP2 _ B+115V _ GND _ 185V _ NC _ NC _ ABL _ H _ AFC

BSC25-2023S / BSC25 – 0106 / BSC25-2666S / BSC25-0111 (KONKA)
COL _ 185V _ B+115V _ GND _ AFC _ 14V _ ABL _ H _ NC _ NC

BSC25-0146 (KONKA)
Col _ 185v _ B+115 _ Gnd _ Nc _ Nc _ Abl _ Ht _ Gnd _ Afc

BSC24-01N4004 / UJF0501 – 19959 / BSC25 – 0235A / BSC25-N 0103 (SANKEN)
Col _ B+115 _ +14V _ -14V _ Gnd _ Ht _ Afc _ Abl _ Nc _ 180v

84-L83-606-01 / FTK 14B011 (AIWA)
COL _ B+115V _ 24V _ GND _ 185V _ H _ ABL _ GND _ AFC _ 12V

BSC25-N1089D (ASATRON SLIM)
Col _ B+115v _ +17v _ Afc _ Gnd _ H _ Abl _ Nc _ 180v _ -17v

154 – 164F / 154 – 165D / JF0501-1212 (DETRON)
24v _ 14v _ B+115V _ H _ AFC _ ABL _ GND _ 185V _ NC _ COL

JF0501 -1206 / JF0501-1204 (SANSUI)
COL _ B+115V _ 185V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC

JF0501-1909A / JF0501-1214 (TCL)
185V _ COL _ AFC _ B+115V _ 12V _ 24V _ ABL _ GND _ NC _ H

8-598-858-00 / 8-598-831-00 / 8-598-811 / 1-453-284-11 (SONY)
COL _ B+200V _ H _ GND _ -13V _ GND _ +13V _ NC _ ABL

1-439-423-32 (SONY TRINITRON)
H1 _ H2 _ 180v _ B+ _ Col _ 14V _ Abl _ Nc _ 26v _ Nc _ Gnd

6174Z – 8006A (RCA)
B+110 _ Col _ 6.5V _ Gnd _ H _Abl _ -12V _ Gnd _ 180v _+12V

JF0501 – 9185 / BSC25 – N2319 / BSC25 – N2911 (PHILIPS)
Col_B+125v_180v_Afc_H_8v_12v_ABL_45v_Gnd

BSC25 – 0820 (FUJIAN)
Col _ B+115 _ Nc _ Nc _ 25v _ 12v _ Abl _ Ht _ Gnd _ 180v

154-177B / 154-064P / 6174-8004A / 6174Z-6040X / MF6549 (LG GOLDSTAR)
COL _ 185V _ B+115V _ GND _ 16V _ 24V _ 40V _ ABL _ H _ AFC

154-177E (GOLDSTAR)
COL _ 185V _ B+90v _ BOOST UP _ 25V _ 12V _ GND _ ABL _ H _ AFC

BSC25 – 0262 (JVC)
COL _ B+115V _ AFC _ NC _ 24V _ GND _ H _ ABL _ 185V _ GND

DCF 2217J
Col _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater

FCK 14A006 / FCM 2015HE / FCM 14A032
Col _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl

FCK 1411 L 01 / FCM 14A025
Col _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v

FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ Col _ Abl _ 175v _ 24v

FSA 16012M / DCF 2077A / DCF 1577 / FSA 16012M
Col – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater

K 148 TC
Col – 180v _ B+ – Gnd _ Afc _ 16v _ Abl _ Heater _ Nc _ Nc

MC – FBC-015 / LCE CF0854
Col _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl

JF 0501-1206
Col _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
FSV – 20A001 / FCK – 14A033 / FSV – 14A001
Col _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5

AKARI
FUY-20C009
COL _ 180V _ B+ _ GND _ NC _ 24V _ NC _ ABL _ HT _ AFC
AKARI
FSV – 20A001
FCK – 14A033
FSV – 14A001
C _ B+ _ 125V _ ABL _ NC _ GND _ 185V _ 46V _ H _ NC _ 16,5V
AKARI
FUY-20C009
C _ 180 _ B+ _ gnd _ nc _ 24 _ nc _ abl _ Ht _ afc
AKARI FUJITEC
14″ BSC22 – 01N401
20″ BSC24 – 01N40TA
14″ BSC25 – 1194
21″ BSC25 – 4803T
14″ BSC22 – 2007 (B+125)
20″ BSC25-N0803A
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ NC
AKIRA
14″ JF0501 – 1901
21″ BSC23 – N0114
COL _ B+115V _ GND _ 185V _ H _ ABL _ GND _ 16V _ NC _ 24V
AKIRA
21″ JF0501 – 19959
21″ BSC25 – 0235A
BSC25-4004A
BSC25-N 0103
BSC24-01N4004U
COL _ B+115V _ +14V _ -14V _ GND _ H _ AFC _ ABL _ NC _ 185V
AKIRA
CT-29TK9Ae
JF0501-2202
Col _ B+125v _ Afc/Nc _ -12v _ +12v _ Gnd _ H _ Abl _ Gnd _ 180v
AKIRA SLIM
29″ BSC29-N2477
Col _ 180v _ B+130v _ Gnd _ Nc(14v) _ 25v _ Nc(Gnd) _ Abl _ H _ Inner
AKIRA FUJITEC
IC 8893CPBNG
21″ BSC25 – 05N2135H
21″ BSC25 – N0379
21″ BSC25 – 3604V
COL _ B+115V _ NC _ AFC _ GND _ H _ ABL _ 180V
AKIRA FUJITEC
BSC22-68F03
BSC25-N0449
COL _ B+115V _ 24v _ AFC _ GND _ H _ ABL _ 180V
FUJITEC
BSC22 – 2314H
JF0501-1903
FCM14A032
KFS 60844
COL _ B+115V _ 180V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NC
CHINA
BSC 25 Z 603F
BSC 25 – 4813A
BSC 25 – N1003A
BSC25 – N0608
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ NC(180V)
CHINA
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-N0313
BSC25-F1125A
TP1 _ COL _ TP2 _ B+115v _ TP3 _ TP4 _ GND _ H _ ABL _ AFC
CHINA
BSC 25 – 2004PR
COL _ B+115v _ NC _ AFC _ GND _ H _ ABL _ NC _ TP1 _ TP2
CHINA
BSC24-01N4014K
BSC25-T1010A
T1_COL_T2_B+115v_T3_T4_GND_H_ABL_180V
CHINA
29″ BSC26 – 3606A
Col _ B+115V _ NC _ AFC _ GND _ H _ ABL _ T1 _ T2 _ T3
CHINA
BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ ncCHINA
BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180vCHINA
29″ BSC28 – N2329
Col _ TP2 _ B+115V _ GND _ 185V _ NC _ NC _ ABL _ H _ AFCKONKA CHINA
14″ BSC25-2023S
14″ BSC25 – 0106
21″ BSC25-2666S
20″ BSC25-0111
COL _ 185V _ B+115V _ GND _ AFC _ 14V _ ABL _ H _ NC _ NCKONKA CHINA
21″ BSC25-0146
Col _ 185v _ B+115 _ Gnd _ Nc _ Nc _ Abl _ Ht _ Gnd _ AfcSANKEN
21″ BSC24-01N4004U
JF0501 – 19959
BSC25 – 0235A
BSC25-N 0103
Col _ B+115 _ +14V _ -14V _ Gnd _ Ht _ Afc _ Abl _ Nc _ 180vAIWA
84-L83-606-01
FTK 14B011
COL _ B+115V _ 24V _ GND _ 185V _ H _ ABL _ GND _ AFC _ 12V
ASATRON SLIM
21″ BSC25-N1089D
Col _ B+115v _ +17v _ Afc _ Gnd _ H _ Abl _ Nc _ 180v _ -17vDETRON
14″ 154 – 164F
20″ 154 – 165D
20″ JF0501-1212
24v _ 14v _ B+115V _ H _ AFC _ ABL _ GND _ 185V _ NC _ COLSANSUI
JF0501 -1206
JF0501-1204
COL _ B+115V _ 185V _ 16V _ 24V _ H _ GND _ ABL _ AFC _ NCTCL
21″ BSC25 – 0299D
21″ BSC25 – 0273F
21″ JF0501-1914V1
BSC25 – 0231
21″ BSC25-0284C
BSC 66G (124-3810)
BSC25-0211
JF0501-1909A
JF0501-1214
185V _ COL _ AFC _ B+115V _ 12V _ 24V _ ABL _ GND _ NC _ HSONY
8-598-858-00
8-598-831-00
8-598-811
1-453-284-11
COL _ B+200V _ H _ GND _ -13V _ GND _ +13V _ NC _ ABLSONY TRINITRON
29″ 1-439-423-32
H1 _ H2 _ 180v _ B+ _ Col _ 14V _ Abl _ Nc _ 26v _ Nc _ Gnd
RCA
14″ 6174Z – 8006A
B+110 _ Col _ 6.5V _ Gnd _ H _Abl _ -12V _ Gnd _ 180v _+12VPHILIPS
29″ JF0501 – 9185
BSC25 – N2319
BSC25 – N2911
Col_B+125v_180v_Afc_H_8v_12v_ABL_45v_Gnd

HITACHI FUJIAN
BSC25 – 0820
Col _ B+115 _ Nc _ Nc _ 25v _ 12v _ Abl _ Ht _ Gnd _ 180v

GOLDSTAR
154-177B, 154-064P, 6174-8004A (kadang 12V/16V gak ada), 6174Z-6040X, MF6549
COL _ 185V _ B+115V _ GND _ 16V _ 24V _ 40V _ ABL _ H _ AFC

GOLDSTAR
154-177E
COL _ 185V _ B+90v _ BOOST UP _ 25V _ 12V _ GND _ ABL _ H _ AFC

JVC
21″ BSC25 – 0262
COL _ B+115V _ AFC _ NC _ 24V _ GND _ H _ ABL _ 185V _ GND
JVC AV20NX
21″ JF0501 – 3241 / QQ0189 – 001
Col _ B+115v _ AFC _ -12V _ +12V _ Gnd _ HT _ ABL _ 185v _ GnD

TOSHIBA
14″ TFB 4067 BD, 21″ TFB 4125CH, 21″ TFB 4213AG (Flat)
29″ TFB 4086A
COL _ B+115V _ 185V _ GND _ NC _ 24V _ 12V _ ABL _ H _ AFC

TOSHIBA
TFB 4125 DY, TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

POLYTRON
FCM-20B061N
Col _ B+ _ gnd _ 185 _ nc _ Ht _ Nc _ abl _ +12 _ -12

POLYTRON
JF0601-19577
Col _ B+ _ gnd _ 200v _ nc _ Ht _ nc _ abl _ +12 _ -12

POLYTRON DIGITEC
20″ FCM 20 B 061N, 21″JF 0501- 19577
Col _ B+115V _ Gnd _ NC _ 185V _ H _ NC _ ABL _ +12V _-12V

POLYTRON DIGITEC
21″ JF0501-195913, 21″ FTK-21R011UN
Col _ B+115V _ Gnd _ 185v _ Nc _ H _ 25v _ Bcl _ 12v _ Afc

POLYTRON LAMA
14″ FCK 14A006, 20″ FCM2015H, 20″ FTK21R002
Nc _ Nc _ GND _ 185V _ 16V _ H _ 24V _ ABL _ B+115V _ COL

SANYO
21″ L 40 B 15300 / L40B17100, JF0501-32639 (SANYO SLIM 21″)
Col _ B+115V _ Nc _ 185V _ AFC _ ABL _ Nc _ LOW B _ H _ GND

SANYO SLIM FLAT 29″
BSC26-2629S part no: ILB4L40B07500
Col_B+140v_Nc_Video 185v_Afc_Abl_Nc_Low B_H_Gnd

SAMSUNG FLAT SLIM 29″
JF0501 – 91911 (FQH29A003) (B+125v), 21″ SLIM FQH21A004 / BSC25-0217G / AA26-00305A / FUH29A001B (S) (B+120/125V)
Col _ Nc _ B+125V _ Nc _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL

SAMSUNG
FSV 14A004, FSV14A001, FSV20A001
16,5V _ AFC _ H _ 24/40V _ 180V _ GND _ NC _ ABL _ B+125V _ COL

SAMSUNG
FTK-14A004P
C _ B+125v _ ABL _ Nc _ Gnd _ 180v _ 24v _ Ht _ AFC _ 16,5

SAMSUNG
FOK14A001, FSV-14A004C, FSV-14A004H, FSA-38031M, FSA 173 B, AA26-002101A
+16,5V _ 24V _ H _ -16V,5 _ 185V _ GND _ NC _ ABL _ B+125V _ COL

SAMSUNG Flat
FOK14B001, FOK14B001
Col _ NC _ B+123V _ NC _ 200V _ Gnd _ H _ -16,5V _ +16,5V _ ABL

SHARP
14″ F0067PE, 20″ F0069PE
Col _ B+115V _ 24V _ 16V _ NC _ AFC _ GND _ H _ 185V _ ABL

SHARP
21″ F0147PE
Col _ B+115V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP
14″ F0193 / 21″F0194
Col _ B+115V _ GND _ 40V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP PICOLLO
14″ BSC26 – 2631S / FA060 WJ – SA, 21″ JF0501-32601 / FA071WJ – A, 21″ BSC25-0232A / FA104WJZZ
Col _ B+125V _ GND _ 24V _ 12V _ AFC _ 185V _ GND _ H _ ABL

SHARP
29″ FA100WJ / FA116WJ
Col _ B+125v _ Gnd _ +14v _ -14v _ Nc _ 180v _ Gnd _ H _ Abl

Lihat daftar kumpulan Flyback TV Sharp tabung Lengkap

LG
20″: 6174 – 6006E
Col _ 185v _ B+115V _ Gnd _ -14v _ +14v _ Gnd _ ABL _ H _ AFC

LG
21″ 6174V-6006H (Flat & Super Slim)
21″ BSC24-3366J (Super Slim)
COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC
LG
29″ 6174Z – 5003A, 29″ BSC28 – N2334
Col _ B+115v _ +14v _ -14v _ 200v _ Gnd _ Nc _ 28v _ ABL _ HLG
ULTRA SLIM
21″ BSC25-N0363, 29″ BSC26-N2138
Col_B+115V_+14V_-14V_200V(Video)_Gnd_Inner_26V_Abl_H
LG SUPER SLIM
6174913002A, BSC24-3366J
COL _ 185V _ B+115V _ GND _ Nc _ 24V _ Nc _ ABL _ H _ AFC
PANASONIC
TLF14695F/Alpha Gold, TLF 15610 F, TLF 15611 F, KFS60844
Col _ B+ _ Gnd _ PS sink – _ 25v _ Ht _ 185v _ Abl _ Nc _ PS sink+
PANASONIC
20″ TLF 4N052
Col _ B+115v _ Nc _ 24v _ H _ 180v _ Gnd _ Gnd (R2W 1 ohm)_16v_ABL
PANASONIC
ZTF N82014B
Col _ B+140v _ Nc _ +16v _ Gnd _ H _ Gnd _ ABL _ -16v _ 180v
PANASONIC
21″ G4GAM3F2
Col _ B+90v _ 180v _ Nc _ Nc _ Nc _ Nc _ Abl _ Gnd _ Ht
154-064P, 154-177B,  FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc
154 – 132A, 154 – 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v
154 189H, 154 277C, FCM 20B027
Col _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc8-
598-858–00, 8-598-811
Col _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ AblDCF 2217J
Col _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heaterF
0101KM-SA, F 0141 PE-M
Col _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ AblFCK
14A006, FCM 2015HE,FCM 14A032
Col _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ AblFCK
1411 L 01, FCM 14A025
Col _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5vFCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ Col _ Abl _ 175v _ 24v
FSA 16012M, DCF 2077A, DCF 1577, FSA 16012M
Col – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _HeaterFSV – 20A001
FCK – 14A033, FSV – 14A001
Col _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5
JF 0501-1206
Col _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc
MC – FBC-015, LCE CF0854
Col _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl
Data Flyback
Kode Koneksi : 12-3467-589-10
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _
Gns_ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Data Travo Flyback 154-138L,FA061WJ-SA
Kode Koneksi : 135-2-468910-7
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ NC _ Col _ AFC _ B+110 _ 45 _ ABL _ GND _ 12 _ HT
Digunakan Pada TV : Solitron
Data Travo Flyback BSC24-01N4019L
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC
Digunakan Pada TV : China Brand
Data Travo Flyback JF0501-1901
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col B+110 _ GND _ 180 _ HT _ ABL _ GND _ 16 _ NC _ 26
Digunakan Pada TV : Akira
Data Travo Flyback BSC24-N40G1
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan :
BSC24-01N4006EV, BSC25-09N20E, BSC25-T1010A, BSC25-Z603F, BSC24-01N, 4006EVR, BCS28-2198
Data Travo Flyback BSC25-3504V
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ 180
Digunakan Pada TV : China Brand
Persamaan : BSC22-0106, BSC25-05N1418, BSC25-05N2135C
Data Travo Flyback BSC24-09G
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC
Digunakan Pada TV : China Brand
Data Travo Flyback BSC25-N0449
No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China Brand
Persamaan : BSC22-68F03
Data Travo Flyback BSC22-68F03
No. Pin 1 2 3 4 5 6 7 8
Fungsi Col _ B+110 _ 26 _ AFC _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China Brand
Persamaan : BSC25-N0449
Data Travo Flyback FCM2014FL
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 _ Col
Digunakan Pada TV : Samsung

Persamaan : FCM14A025
Data Travo Flyback FCM14A025
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16 _ AFC _ HT _ 24 _ 180 _ GND _ BOST _ ABL _ B+110 H
Digunakan Pada TV : Samsung
Persamaan : FCM2014FL
Data Travo Flyback JF0501-1914
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan : BSC25-0231
Data Travo Flyback BSC25-0231
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 180 _ Col _ AFC _ B+110 _ 12 _ 24 _ ABL _ GND _ NC _ HT
Digunakan Pada TV : TCL
Persamaan : JF0501-1914
Data Travo Flyback BSC25-F1125A
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan : BSC24-014001D, BSC25-N0321, BSC25-N1534, BSC25-N1634, BSC25-Z1003, BSC25-Z2705, BSC25-Z2706, BSC25-N0313
Data Travo Flyback BSC25-N0313
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ AFC
Digunakan Pada TV : China Brand
Persamaan :
BSC24-014001D
BSC25-N0321
BSC25-N1534
BSC25-N1634
BSC25-Z1003
BSC25-Z2705
BSC25-Z2706
BSC25-F1125AData Travo Flyback BSC25-2678S
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-0113
BSC25-023DData Travo Flyback BSC25-023D
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-0113
BSC25-2678SData Travo Flyback BSC25-0113
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ AFC _ 12 _ ABL _ HT _ NC _ NC
Digunakan Pada TV : Konka
Persamaan :
BCS25-N1603
BSC25-023D
BSC25-2678SData Travo Flyback BSC25-N0211
No. Pin 1 2 3 4 5 6 7 8 9
Fungsi Col _ B+110 _ H1 _ AFC _ GND _ HT _ ABL _ H2 _ H3
Digunakan Pada TV : China Brand
Persamaan : BSC25-05N2120RData Travo Flyback TFB4125CH
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFC
Digunakan Pada TV : Toshiba
Persamaan : TFB4122BDData Travo Flyback BSC25-05N2135C
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 16 _ AFC _ GND _ HT _ ABL _ NP _ 180 _ NP
Digunakan Pada TV : Akira
Persamaan :
BSC22-0106
BSC25-05N1418
BSC25-3504VData Travo Flyback FCM-20B061N
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ 180 _ NC _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron
Persamaan : JF0601-19577
Data Travo Flyback JF0601-19577
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ 180 _ NC _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron
Persamaan : FCM-20B061N
Data Travo Flyback DST2010-D91
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ NC _ 180 _ HT _ NC _ ABL _ 12 _ -12
Digunakan Pada TV : Polytron
Data Travo Flyback BCS28-2198
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H1 _ Col _ H2 _ B+110 _ H3 _ H4 _ GND _ HT _ ABL _ 180
Digunakan Pada TV : China
Persamaan :
BSC24-01N4006EV
BSC25-09N20E
BSC25-T1010A
BSC25-Z603F
BSC24-01N4006EVRBSC24-N40G1
Data Travo Flyback 6174Z-6238L
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+140 _ GND _ 13 _ -13 _ 28 _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
154-177B, 154-064P, FCK-14B047, JF0501-1206, JF0501-91802
Data Travo Flyback 6174Z-6005U
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+120 _ 14 _ -14 _ 204 _ 28 _ NC _ ABL _ HT _ NC
Digunakan Pada TV : LG

Data Travo Flyback 6174V-6006V
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ NC _ 24 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LGData Travo Flyback 154-374A
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 200 _ B+125 _ GND _ 16 _ 26 _ 45 _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan :
154-177B, 154-064P, FCK-14B047, JF0501-1206, JF0501-91802, 6174Z-6238L
Data Travo Flyback JF0501-91802
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+130 _ GND _ NC _ 24 _ NC _ ABL _ HT _ NC
Digunakan Pada TV : China
Persamaan : 154-177B, 154-064P, FCK-14B047, JF0501-1206, 154-374A, 6174Z-6238L
Data Travo Flyback BCS25-4004U
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ H1 _ H2 _ GND _ NC _ 12.5 _ B+140 _ ABL _ HT _ AFC
Digunakan Pada TV : China
Data Travo Flyback BCS25-N1603
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi C _ 180 _ B+108 _ GND _ AFC _ 12.5 _ ABL _ HT _ NP _ NP
Digunakan Pada TV : Konka
Persamaan : BSC25-0113, BSC25-023D, BSC25-2678S
Data Travo Flyback FCM-21A004
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ 195 _ AFC _ ABL _ GND _ 14 _ NC _ 24
Digunakan Pada TV : China
Data Travo Flyback BSC23-N0121
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan : 6174V-6006H, 6174V-6006E
Data Travo Flyback 6174V-6006E
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan : 6174V-6006H, BSC23-N0121
Data Travo Flyback 6174V-6006H
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 26 _ NC _ ABL _ HT _ AFC
Digunakan Pada TV : LG
Persamaan : 6174V-6006E, BSC23-N0121Data Travo Flyback FA137WJZZ
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan : BSC25-0217BData Travo Flyback BSC25-0217B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ GND _ 24 _ NC _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan : FA137WJZZData Travo Flyback L40B9001
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Digunakan Pada TV : Sanyo
Persamaan : L40B05500Data Travo Flyback L40B05500
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+130 _ NC _ AFC _ GND _ HT _ GND _ ABL _ NC _ 180
Digunakan Pada TV : Sanyo
Persamaan : L40B9001Data Travo Flyback FCM14A032
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan : FCK14A006, FCM2015HEData Travo Flyback FCM2015HE
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan : FCK14A006, FCM14A032Data Travo Flyback FCK14A006
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi NC _ NC _ GND _ 180 _ 15 _ HT _ 24 _ ABL _ B+110 _ H
Digunakan Pada TV : Polytron
Persamaan : FCM2015HE, FCM14A032Data Travo Flyback JF0501-1206
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 180 _ 16 _ 24 _ HT _ GND _ ABL _ AFC _ NC
Digunakan Pada TV : Sansui
Persamaan : 154-177B, 154-064P, FCK-14B047, JF0501-91802, 154-374A, 6174Z-6238LData Travo Flyback FSA16012M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan : DCF-2077D DCF-2077A DCF-1577

Data Travo Flyback DCF-1577
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Persamaan : DCF-2077D, DCF-2077A, FSA16012M



No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+103 _ AFC _ Bost-Up _ 16 _ 24 _ ABL _ GND _ 180 _ HT
Digunakan Pada TV : Solidtron
Persamaan : DCF-2077A, DCF-1577, FSA16012M

Data Travo Flyback F0141PE-M
Urutan Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan : F0194PEN1-SA, F0193PEN1-SA, F0147PE-M, BCS21-2647, F0101KM-SA,F0102KM, F02299PE-B

Data Travo Flyback FCK-14B047
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ 180 _ B+110 _ GND _ 12 _ 24 _ 40 _ ABL _ HT _ AFC
Digunakan Pada TV :
Persamaan : 154-177B, 154-064P, JF0501-1206, JF0501-91802, 154-374A, 6174Z-6238L

Data Travo Flyback TFB4122BD
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ 185 _ GND _ NC _ 26 _ 12 _ ABL _ HT _ AFT
Digunakan Pada TV : Toshiba
Persamaan : TFB4125CH

Data Travo Flyback BSC24-01N40K
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ NC _ B+110 _ GND _ AFC _ NC _ ABL _ HT _ NC _ NC
Digunakan Pada TV : China Brand

Data Travo Flyback 2435521
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ GND _ 25 _ 200 _ B+110 _ HT _ ABL _ 14 _ NC _ NC
Digunakan Pada TV : Hitachi
Data Travo Flyback BSC25-N3604
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ H1 _ H2
Digunakan Pada TV : China Brand
Data Travo Flyback TLF4G503F
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 185 _ GND _ AFC _ 16 _ ABL
Digunakan Pada TV : Panasonic
Persamaan : TLF15644F1, TLF4N052
Data Travo Flyback TLF4N052
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+90 _ NC _ 24 _ HT _ 180 _ GND _ AFC _ 16 _ ABL
Digunakan Pada TV : Panasonic
Persamaan : TLF15644F1, TLF4G503F
Data Travo Flyback F02299PE-B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ GND _ NC _ 24 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan : F0194PEN1-SA, F0193PEN1-SA, F0147PE-M, BCS21-2647, F0101KM-SA, F0102KM, F0141PE-M
Data Travo Flyback F0102KM
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0101KM-SA
F02299PE-B
F0141PE-M
Data Travo Flyback F0101KM-SA
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
F0147PE-M
BCS21-2647
F0102KM
F02299PE-B
F0141PE-M
Data Travo Flyback BSC24-08B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-N1617
BSC25-Z601F
BSC24-01N4019L
Data Travo Flyback BSC25-Z601F
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-N1617
BSC24-08B
BSC24-01N4019LData Travo Flyback BSC25-N1617
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-4803T
BSC25-Z601F
BSC24-08B
BSC24-01N4019LData Travo Flyback BSC25-4803T
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+110 _ NC _ AFC _ GND _ HT _ ABL _ NP _ NC _ NP
Digunakan Pada TV : China Brand
Persamaan :
BSC23-01N16
BSC23-01N16
BSC24-01N36
BSC24-09G
BSC25-N1617
BSC25-Z601F
BSC24-08B
BSC24-01N4019LData Travo Flyback FSV-14A004C
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 _ NC _ HT _ -16.5 _ 185 _ GND _ NC _ ABL _ B+125 _ Col
Digunakan Pada TV : Samsung
Persamaan :
FOK14A001
AA26-002101AData Travo Flyback FSV20A099
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 15 _ 24 _ HT _ 45 _ 180 _ GND _ NC _ ABL _ B+125 _ H
Digunakan Pada TV : Sanken
Data Travo Flyback F0147PE-M
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi Col _ B+115 _ GND _ 24 _ 12 _ AFC _ 180 _ GND _ HT _ ABL
Digunakan Pada TV : Sharp
Persamaan :
F0194PEN1-SA
F0193PEN1-SA
BCS21-2647
F0101KM-SA
F0102KM
F02299PE-B
F0141PE-M
SHARP F0193PEN1-SA
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+115 GND 45 12 AFC 180 GND HT ABL
Persamaan : F0194PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F0102KM F02299PE-B F0141PE-M
SAMSUNG FOK14A001
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi 16.5 NC HT -16.5 200 GND NC ABL B+130 H
Persamaan : AA26-002101A FSV-14A004C
GOLDSTAR 154-177B
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H 180 B+110 GND 12 24 40 ABL HT AFC
Persamaan : 154-064P FCK-14B047 JF0501-1206 JF0501-91802 154-374A 6174Z-6238L
PANASONIC TLF15644F1
No. Pin 1 2 3 4 5 6 7 8 9 10
Fungsi H B+90 NC 24 HT 185 GND GND 16 ABL
Persamaan : TLF4N052 TLF4G503F

FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V/NC/H/46V/185V/GROUND/NC/ABL/B+125V/COL

154-064P (Goldstar)
154-177B

FCK 14B047 (Akari)
COL/185V/B
+/GROUND/16V/24V/40V/ABL/H/AFC

154-064G (Goldstar)
154-177E
COL/180V/92V/125VBOOST/24V/12V/GROUND/ABL/H/AFC

FCM 14A025 (Samsung,
Blaupunkt)
FCM 1411L01
16,5V/AFC/H/24V/180V/GROUND/B+90V/ABL/125VBOOST/COL

DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL/B+/AFC/125VBOOST/16,5V/ABL/24V/GROUND/180V/H

FTK 14B011 (Aiwa)
COL/B+/25V/GROUND/180V/H/ABL/GROUND/AFC/15V

FCK 1411E10A (Etron)
190V/COL/NC/B+/NC/24V/ABL/GROUND/15V/H

JF 0208-0208C (Solitron)
COL/B+/GROUND/185V/H/ABL/GROUND/15V/AFC/24V

JF 0208-0210B (Sansui)
JF 0501-0501
COL/B+/180V/14V/24V/H/GROUND/ABL/AFC/NC

FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL/B+/GROUND/200V/NC/H/NC/ABL/+12v/-12v

JF 0501-1206 (Sansui)
COL/B+/180V/16V/25V/H/GROUND/ABL/AFC/NC

L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND

L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V

L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL

L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V

6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC

BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_H_ABL_NC

BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B
+_TEP_TEP_GROUND_H_ABL_180V

BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC

BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC

BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC

TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC

FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL

154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC

FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC

FCK 14A006 (Digitec, Polytron,OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_

154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H

CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC

CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL

FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H

BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC

BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC

BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC

F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194=16V)

F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H

F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL

F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL

FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL

FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL

FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL

154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC

BSC 25-N0363
(LG 21FU6RL/PearlBlack)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC

8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL

QQH0132-001 (JVC AV-1438)
COL/B
+/40V/NC/25V/GROUND/H/ABL/180V/GROUND

JF 0501-19539 (Polytron
MX5262RF/Zepelin)
COL/B+/GROUND/185V/NC/H/25V/ABL/12V/Hpulse

BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V/24V/H/46V/180V/GROUND/NC/ABL/B+125V/COL

FTK 14A004F(S) (SAMSUNG)
16,5V/24V/H/-16,5V/185V/GROUND/NC/ABL/B+125V/COL

1. L40B18500 (SANYO)
COL/B+/24V/180V/AFC/NC/ABL/16V/GROUND/H

2. BSC25-0232A/FA 104 WJZZ
COL/B+/GROUND/24V/+12V/-12V/180V/GROUND/H/ABL
(SHARP)

3. BSC 25-0285B : COL/B
+/24V/15V/GROUND/H/NC/180V/NC/ABL

154-064P
154-177B
FCK-14B047 6174Z-8004R
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc

FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v

FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater

JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc

JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12

FCK 14A006
FCM 2015HE
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl

FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12

FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc

BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc

154 – 132A
154 – 132C
C _ 20v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v

FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v

154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc

MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl

FSV – 20A001
FCK – 14A033
FSV – 14A001
16v_Nc_Htr_40v_185v_Grd_Nc_Abl_B+_Cool

BSC 25-N3604 T-R
BSC 25-09N21A
H_Cool_H_B+_24volt_12volt_Grd_Abl_180volt_Hiter

JF 0501-19131
C_B+_12v_Nc_+12v_-12v_180v_Abl_H_Grd

JF 0501-3212
C_B+_Grd_180v_Htr_Abl_Grd_16_Afc_24

BSC 22N56T
C_B+_Afc_24v_Grd_Htr_Abl_180v

154-064D
C_180v_B+_Boost Up_24v_12v_Grd_Abl_Htr+Afc

001-214701-13 (Fujitek)
C_B+_180v_16v_24v_Htr_Grd_Abl_Nc_Nc

QQH-0073-001
QQH-0058-001 (JVC)
C_B+_H pulse_Nc_24v_Grd_Htr_Abl_185v_Grd

CF – 93201
KFS – 60505
+_+_B+_Htr_Afc_Abl_Grd_180v_C

FCM 14B014N
JF 0501-19539
C_B+_Grd_185v_Nc_Htr_24v_Abl_+16_-16v

6174Z-8005C
6174V-6002U
BSC 26-N2121(N)
C_180v_B+_Grd_Nc_24v_Grd_Abl_Htr_Afc

QQH 0132-001
C_B+_40v_Nc_25v_Grd_Htr_Abl_185v_Grd

BSC 25-N3604A4
C_185v_B+_Grd_Nc_Nc_Nc_Abl_Htr_Afc

6174V-6006B
C_185v_B+_Grd_-14_+14_Grd_Abl_Htr_Afc

154-064P Goldstar / 154-177B / FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc

F0101KM-SA / F 0141 PE-M
C _ B+ _ Gnd _ 24v _ 16v _ Afc _ 180v _ Gnd _ Heater _ Abl

FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v

FSA 16012M / DCF 2077A / DCF 1577/ FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater

JF 0501-1206 sansui
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ N…

F0101 KM-SA sharp 14R20 / F0102 KM-SA sharp 20R20B, 20R200, 51R200C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL

FA122WJ-B
C_B+(130V)_GND_24V_NC_AFC_180V_GND_HT_ABL

F094 FA061 WJ-SA sharp 51X200
C_B+(130V)_GND_24V_12V_AFC_185V_GND_HT_ABL

F0122 PE-M sharp 20Q250
C_B+_24V_16V_NC_AFC_GND_HT_180V_ABL

F0147
C_B+_GND_24V_16V_AFC_180V_GND_HT_ABL

F0194 PEN1-SA sharp 20R200MKII, 51U200, 20W200/ F2037 PE-B sharp 20AG2-SC_B+_GND_40V_16V_AFC_180V_GND_HT_ABL

FA011 WJ-B sharp
C_B+_GND_24V_16V_AFC_180V_NC_HT_…

1. AKARI / FUJITEC China
14″: BSC 22 – 01N401/ BSC25 – 1194
20/21″ BSC25 – 4803T / BSC22 – 2007/ BSC25-N0803A
COL_B+115V_NC_AFC_GND_H_ABL_NC

2. AKIRA
JF0501 – 1901
BSC23 – N0114
COL_B+_GND_185V_H_ABL_GND_16V_NC_24V

AKIRA Vert +14v dan -14v
JF0501 – 19959
BSC25 – 0235A
COL_B+_+14V_-14V_GND_H_AFC_ABL_NC_185V

AKIRA IC8893CPBNG…….BSC25-05N2135H
COL_B+_NC_AFC_GND_H_ABL_180V

3. AIWA 14/20″:
84-L83-606-01
FTK 14B011
COL_B+115V_24V_GND_185V_H_ABL_GND_AFC_12V

4. DETRON
14″ 154 – 164F
20″ 154 – 165D
24v_14v_B+_H_AFC_ABL_GND_185V_NC_COL

5. SHARP
14″ F0067PE
20″ F0069PE
COL_B+115_24V_16V_NC_AFC_GND_H_185V_ABL

14″ F0193 / 21″F0194
Col_B+115_GND_40V_12V_AFC_185V_GND_H_ABL

6. SHARP picollo
14″ BSC26 – 2631S / FA 060 WJ – SA
21″ JF0501-32601
COL_B+125V_GND_24V_12V_AFC_185V_GND_H_ABL

7. GOLDSTAR
154-177B
154-064P
6174-8004A
COL_185V_B+115V_GND_16V_24V_40V_ABL_H_AFC

154-177E
COL_185V_B+_BOOST UP_25V_12V_GND_ABL_H_AFC

8. JVC
21″ BSC25 – 0262
COL_B+115V_AFC_NC_24V_GND_H_ABL_185V_ GND

9. FUJITEC lama
14″ bsc22 – 2314H
COL_B+_180V_16V_24V_H_GND_ABL_AFC_NC

10.SANSUI
JF051 – 1206
COL_B+115V_185V_16V_24V_H_GND_ABL_AFC_NC

11. TOSHIBA
14″ TFB 4067 BD
21″ TFB 4125CH
29″ TFB 4086A
COL_B+_185V_GND_NC_24V_12V_ABL_H_AFC

12. POLYTRON / DIGITEC
20″ FCM 20 B 061N / JF 0501- 19577
COL_B+_GND_NC_185V_H_NC_ABL_+12V_-12V

13. POLYTRON lama
14″ FCK 14A006
20″ FCM2015HE
FCM 14-A032
NC_NC_GND_185V_16V_H_24V_ABL_B+_COL

14. SAMSUNG
FSV 14A004
FSV14A001
FSV20A001
16,5V_AFC_H_24V_180V_GND_NC_ABL_B+125_COL

FOK14A001
+16,5V_24V_H_-16V,5_185V_GND_NC_ABL_B+125V_COL

15. TV China
BSC 25 Z 603F
BSC 25 – 4813A
TP1_COL_TP2_B+_TP3_TP4_GND_H_ABL_NC

16. TV China
BSC 25 – 2004PR
COL_B+_NC_AFC_GND_H_ABL_NC_TP1_TP2

BSC24-01N4014K
T1_COL_T2_B+_T3_T4_GND_H_ABL_180V

17. SANYO
21″ L 40 B 15300 / L40B17100
JF0501-32639 (SANYO SLIM 21″)
COL _B+_NC_185V_AFC_ABL_NC_LOW B_H_GND

18. TCL
21″ BSC 25 – 0299D
185V_COL_AFC_B+115V_12V_24V_ABL_GND_NC_H

19. TV China
29″ BSC26 – 3606A
Col_B+125_NC_AFC_GND_H_ABL_T1_T2_T3

20.TV China
29″ BSC28 – N2329
Col_TP2_B+_GND_185V_NC_NC_ABL_H_AFC

21. TV SAMSUNG
29″ FUH29A001 /
SAMSUNG FLAT SLIM JF0501 – 91911 (FQH29A003)
21″ SLIM FQH21A004
COL_NC_B+125V_NC_200V_GND_H_-16,5V_+16,5V_ABL

22. LG
29″ 6174Z – 5003A
COL_B+115V_+14V_-14V_200V_GND_NC_28V_ABL_H

23. KONKA
14″ BSC25-2023S
COL_185V_B+_GND_AFC_14V_ABL_H_NC_NC

FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_H_46V_185V_GROUND_NC_ABL_B+125V_COL

154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_H_AFC

154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_H_AFC

FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_H_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL

DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_H

FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_H_ABL_GROUND_AFC_15V

FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_H

JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_H_ABL_GROUND_15V_AFC_24V

JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_H_GROUND_ABL_AFC_NC

FCM 14B014N (Polytron, Digitec)
FCM 20B061N
JF 0601-19577
COL_B+_GROUND_200V_NC_H_NC_ABL+12v_-12v

JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_H_GROUND_ABL_AFC_NC

L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_H_GROUND

L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_16V_NC_180V

L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_H_GROUND_NC_NC_ABL

L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_H_ABL_NC_NC_180V

6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_-14V_+14V_GROUND_ABL_H_AFC

BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
BSC 24-09G
COL_B+_NC_AFC_GROUND_H_ABL_NC

BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_H_ABL_180V

BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_H_AFC

BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_H_180V_NC

BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_H_AFC

TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_H_AFC

FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_H_GROUND_ABL_180V_B+_COL

154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_H_GROUND_ABL_AFC_NC

FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_H_AFC

FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_H_24V_ABL_B+_COL_

154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_H

CF 0801 (Fujitec)
COL_B+180V_15V_24V_H_GROUND_ABL_NC_NC

CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_H_25V_15V_GROUND_ABL

FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_H

BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_H_AFC

BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC

BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_H_NC_NC

F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_GROUND_42V_12V_AFC_185V_GROUND_H_ABL
(cat: teg 12v pada FBT F0194= 16V)

F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_GROUND_NC_180V_H

F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_H_185V_ABL

F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_H_ABL

FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL

FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_H_ABL

FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FTK 14A004P (Samsung)
16,5V_AFC_H_24V_180V_GROUND_NC_ABL_(B+125V)_COL

154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_H_NC

BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_GROUND_INNER_26V_NC_ABL_H_AFC

8-598-858-00 (Sony)
8-598-11
COL_B+_200V_H_GROUND_-16,5V_GROUND_+16,5V_NC_ABL

QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_GROUND_H_ABL_180V_GROUND

JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse

BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_H_46V_180V_GROUND_NC_ABL_B+125V_COL

FTK 14A004F(S) (SAMSUNG)
16,5V_24V_H_-16,5V_185V_GROUND_NC_ABL_B+125V_COL

8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_H_GROUND_(-13V)_GROUND_(+13V)_NC_ABL

FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_H_BCL_+12V_-12V

JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_H_GROUND

Sharp picollo
14″ bsc26 – 2631s / fa 060 wj – sa
21″ jf0501-32601
Col_b+125v_gnd_24v_12v_afc_185v_gnd_ht_abl

F 0193 PEN1-SA (Sharp)
F 0194 PEN1-SA
COL_B+_Ground_42V_12V_AFC_185V_Ground_Ht_ABL

(cat: teg 12v pada FBT F0194= 16V)
F 0042PE-M (Sharp)
15V_COL_24V_B+_ABL_AFC_Gnd_NC_180V_Ht

F 0063PE-M (Sharp)
F 0067PE-M
COL_B+_24V_12V_NC_AFC_GROUND_Ht_185V_ABL

F 0102KM-SA (Sharp)
COL_B+_GROUND_24V_14V_AFC_180V_GROUND_Ht_ABL

FA 060WJ-SA (Sharp)
COL_B+_GROUND_NC_12V_(AFC/-12V)_185V_GROUND_H_ABL

FA 061WJ-SA (Sharp)
COL_(B+130V)_GROUND_24V_12V_AFC_185V_GROUND_Ht_ABL

FA 113WJ-B (Sharp)
COL_B+_GROUND_24V_NC_AFC_180V_GROUND_H_ABL

FA 122WJ-B (Sharp)
COL_(B+130V)_GROUND_24V_NC_AFC_180V_GROUND_Ht_ABL

154-279C (Siera, Fuji Electric)
COL_(B+135V)_200V_GROUND_GROUND_25V_16V_ABL_Ht_NC

BSC 25-N0363 (LG 21FU6RL/Pearl Black)
COL_180V_B+_Gnd_INNER_26V_NC_ABL_Ht_AFC

8-598-858-00 (Sony)
8-598-11
COL_B+_200V_Ht_Gnd_16,5V_Gnd_+16,5V_NC_ABL

QQH0132-001 (JVC AV-1438)
COL_B+_40V_NC_25V_Gnd_Ht_ABL_180V_GROUND

Lg ultra slim
21″ bsc25-n0363
29″ bsc26-n2138
col_b+_+14v_-14v_200v(video)_gnd_inner_26v_abl_ht

BSC 25-1194D030 (SANKEN)
FSV 20A099
16,5V_24V_Ht_46V_180V_Gnd_NC_ABL_B+125V_COL

FTK 14A004F(S) (SAMSUNG)
16,5V_24V_Ht_16,5V_185V_GROUND_NC_ABL_B+125V_COL

8-597-041-20 (SONY KV-LS21M61)
COL_B+_200V_Ht_GROUND_(-13V)_GROUND_(+13V)_NC_ABL

FUH 29VH04 (POLYTRON PS30UV25BM) U-SLIM
COL_B+(135)_GROUND_185V_NC_Ht_BCL_+12V_-12V

JF0501-32611 (SANYO CG21SF1T) FLAT 21
COL_B+(125)_NC_185V_AFC_ABL_ABL_NC_Ht_GROUND

sa 16012m
dcf 2077a
dcf 1577
fsa 16012m
c – b+ – afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ht

Jf 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ ht _ gnd _ abl _ afc _ nc

Jf0601-19577 (polytron)
c_b+_gnd_200v_nc_ht_nc_abl_+12_-12

Fck 14a006
fcm 2015he
fcm 14a032
c _ b+ _ abl _ 24v _ ht _ 16v _ 180v _ gnd _ nc _ abl

Fcm-20b061n (polytron)
c_b+_gnd_185_nc_ht_nc_abl_+12_-12

Fuy-20c009 (akari)
c_180_b+_gnd_nc_24_nc_abl_ht_afc

Bsc 65a
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ ht _ afc

154 – 132a
154 – 132c
c _ 40v _ 16,5 _ ht _ gnd _ b+ _ 180v _ gnd _ abl _40v

Fck 1411 l 01
fcm 14a025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24v _ ht _ afc _ 16,5v

154 189h
154 277c
fcm 20b027
c _ b+ _ 180v _ 16v _ 24v _ ht _ gnd _ abl _ afc _ nc

Mc – fbc-015
lce cf0854
c _ b+ _ gnd _ afc _ 185 _ ht _ 25 _ 15 _ gnd _ abl

Fsv – 20a001
fck – 14a033
fsv – 14a001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ ht_ nc _ 16,5

Ftk-14a004p (samsung)
c_b+125v_abl_ nc_ gnd_ 180v_24v_ht_afc_16,5

8-598-858–00
8-598-811
c _ b+135v _ 200v _ ht _ gnd _ -16,5(vertkl) _ gnd(vertkl) _ +16,5(vertkl) _ nc _ abl

Tfb 4125 dy (thosiba)
tfb 4125 hy
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ ht_ afc

Bsc 22-01-06
bsc 25-48
bsc 25-4803
bsc 24-01n362
c _ b+ _ nc _ afc _ gnd _ ht _abl _ nc

Bsc 24-01n4014k
bsc 25-t1010a
bsc 25-09n21a
bsc 25-05n2110a
bsc 25-09n20e
tep _ c _ tep _ b+ _ tep _ tep _ gnd _ ht _ abl _ 180v

Dcf 2217j
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ ht

FSV 14A001 (Samsung)
FSV 20A001
FCK 14A033
FCV 20A001
16,5V_NC_Ht_46V_185V_GROUND_NC_ABL_B+125V_COL

154-064P (Goldstar)
154-177B
FCK 14B047 (Akari)
COL_185V_B+_GROUND_16V_24V_40V_ABL_Ht_AFC

154-064G (Goldstar)
154-177E
COL_180V_92V_125VBOOST_24V_12V_GROUND_ABL_Ht_AFC

FCM 14A025 (Samsung, Blaupunkt)
FCM 1411L01
16,5V_AFC_Ht_24V_180V_GROUND_B+90V_ABL_125VBOOST_COL

DCF 1577 (Daewoo, Mitsuba)
DCF 2077
FSA 16012M
COL_B+_AFC_125VBOOST_16,5V_ABL_24V_GROUND_180V_Ht

FTK 14B011 (Aiwa)
COL_B+_25V_GROUND_180V_Ht_ABL_GROUND_AFC_15V

FCK 1411E10A (Etron)
190V_COL_NC_B+_NC_24V_ABL_GROUND_15V_Ht

JF 0208-0208C (Solitron)
COL_B+_GROUND_185V_Ht_ABL_GROUND_15V_AFC_24V

JF 0208-0210B (Sansui)
JF 0501-0501
COL_B+_180V_14V_24V_Ht_GROUND_ABL_AFC_NC

FCM 14B014N (Polytron, Digitec)
FCM 20B061N
FCM 20B062N à 21″ flat
JF 0601-19577
COL_B+_GROUND_200V_NC_Ht_NC_ABL+12v_-12v

Polytron lama
14″ fck 14a006
20″ fcm2015h
20″ ftk21r002
Nc_nc_gnd_185v_16v_ht_24v_abl_b+_col

JF 0501-19539 (Polytron MX5262RF/Zepelin)
COL_B+_GROUND_185V_NC_H_25V_ABL_12V_Hpulse

JF 0501-1206 (Sansui)
COL_B+_180V_16V_25V_Ht_GROUND_ABL_AFC_NC

L40B17100 (Sanyo)
COL_B+_NC_180V_AFC_GROUND_ABL_NC_Ht_GROUND

L40B09000 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_16V_NC_180V

L40B05500 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_GROUND_NC_NC_ABL

L40B09001 (Sanyo)
COL_B+_NC_AFC_GROUND_Ht_ABL_NC_NC_180V

6174Z-6040C (LG)
BSC 23-N0107
COL_185V_B+_GROUND_14V_+14V_GROUND_ABL_Ht_AFC

BSC 24-08B (Tv China)
BSC 24-01N362
BSC 25-4803
BSC 25-N1616
BSC 25-0106
COL_B+_NC_AFC_GROUND_Ht_ABL_NC

Tv china
Bsc 25 z 603f
bsc 25 – 4813a
Tp1_col_tp2_b+_tp3_tp4_gnd_ht_abl_nc

Tv china
Bsc 25 – 2004pr
Col_b+_nc_afc_gnd_ht_abl_nc_tp1_tp2

BSC 25-T1010A (Tv China)
BSC 24-01N4014K
BSC 25-09N21A
BSC 25-09N20E
TEP_COL_TEP_B+_TEP_TEP_GROUND_Ht_ABL_180V

bsc24-01n4014k
bsc25-t1010a
tp1_col_tp2_b+_tp3_t4_gnd_ht_abl_180v

Tv china
29″ bsc26 – 3606a
Col_b+125_nc_afc_gnd_ht_abl_t1_t2_t3

tv china
29″ bsc28 – n2329
Col_tp2_b+_gnd_185v_nc_nc_abl_ht_afc

BSC 60HZ (Changhong)
COL_B+_190V_GROUND_11V_16V_45V_ABL_Ht_AFC

BSC 24-2231HC (Panda)
COL_B+_46V_16V_GROUND_AFC_ABL_Ht_180V_NC

BSC 65A (Changhong)
COL_B+_190V_GROUND_NC_NC_14,5V_ABL_Ht_AFC

TFB 4067BD (Toshiba)
TFB 4125CH
TFB 4122HY/ES/CS/DY
BSC 23-N0102
COL_B+_185V_GROUND_NC_24V_12V_ABL_Ht_AFC

FCK 14A028 (Fuji Electric)
NC_B+_14V_24V_Ht_GROUND_ABL_180V_B+_COL

154-189C (Fuji Electric)
154-277C
FCM 20B027
COL_B+_180V_14V_22V_Ht_GROUND_ABL_AFC_NC

FUY 20C009 (Akari)
COL_180V_B+_GROUND_NC_24V_NC_ABL_Ht_AFC

FCK 14A006 (Digitec, Polytron, OK)
FCM 2015HE
FCM 14A032
KFS 60844A
NC_NC_GROUND_185V_15V_Ht_24V_ABL_B+_COL

154-138K (Etron)
154-182H
190V_NC_COL_AFC_B+_43V_ABL_GROUND_12V_Ht

CF 0801 (Fujitec)
COL_B+180V_15V_24V_Ht_GROUND_ABL_NC_NC

CF 0854 (Fuji Electric, Siera)
CF 0582
COL_B+_GROUND_AFC_185V_Ht_25V_15V_GROUND_ABL

Polytron / digitec
20″ fcm 20 b 061n / jf 0501- 19577
Col_b+_gnd_nc_185v_ht_nc_abl_+12v_-12v

FSA 28027M (Fuji Electric)
COL_NC_NC_123V_12V_ABL_25V_GROUND_185V_Ht

Toshiba
14″ tfb 4067 bd
21″ tfb 4125ch
29″ tfb 4086a
Col_b+_185v_gnd_nc_24v_12v_abl_ht_afc

BSC 24-01N4009A (Tv China)
COL_NC_B+_GROUND_NC_TEP_NC_ABL_Ht_AFC

BSC 22-2314H (Fujitec)
COL_B+_180V_15V_24V_AFC_GROUND_ABL_NC_NC

BSC 22-01N40J (Tv China)
COL_180V_115V_GROUND_22V_16V_ABL_Ht_NC_NC

FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v

FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v

MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl

TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

JY0301-0206 tv china 29
C_B+_nc_afc_gnd_HT_abl_tep_tep_tep

DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater

154-064P
154-177B
FCK-14B047
C _ 180v _ B+ _ Gnd _ 16v _ 24v _ 40v _ Abl _ Heater _ Afc

FCG 2045 BL
Afc – 16,5v _ Heater _ Boost-up _ B+83v _ Gnd _ Nc _ C _ Abl _ 175v _ 24v

FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
C – B+ – Afc _ Boost-up _ 16,5 _ Abl _ 25v _ Gnd _ 185v _Heater

JF 0501-1206
C _ B+ _ 180v _ 16v _ 25v _ Heater _ Gnd _ Abl _ Afc _ Nc

JF0601-19577 (polytron)
C_B+_gnd_200v_nc_Ht_nc_abl_+12_-12

FCK 14A006
FCM 2015HE
FCM 14A032
C _ B+ _ Abl _ 24v _ Heater _ 16v _ 180v _ Gnd _ Nc _ Abl

FCM-20B061N (polytron)
c_B+_gnd_185_nc_Ht_Nc_abl_+12_-12

FUY-20C009 (akari)
C_180_B+_gnd_nc_24_nc_abl_Ht_afc

BSC 65A
C _ B+ _ 190v _ Gnd _ Nc _ Nc _ 14,5v _ Abl _ Heater _ Afc

154 – 132A
154 – 132C
C _ 40v _ 16,5 _ Heater _ Gnd _ B+ _ 180v _ Gnd _ Abl _40v

FCK 1411 L 01
FCM 14A025
C _ Boost-up _ Abl _ B+ _ Gnd _ 180v _ 24V _ Heater _ Afc _ 16,5v

154 189H
154 277C
FCM 20B027
C _ B+ _ 180v _ 16v _ 24v _ Heater _ Gnd _ Abl _ Afc _ Nc

MC – FBC-015
LCE CF0854
C _ B+ _ Gnd _ Afc _ 185 _ Heater _ 25 _ 15 _ Gnd _ Abl

FSV – 20A001
FCK – 14A033
FSV – 14A001
C _ B+125v _ Abl _ Nc _ Gnd _ 185 _ 46 _ Heater _ Nc _ 16,5

FTK-14A004P (samsung)
C_B+125v_ABL_ Nc_ Gnd_ 180v_24v_Ht_afc_16,5

8-598-858–00
8-598-811
C _ B+135v _ 200v _ Heater _ Gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ Nc _ Abl

TFB 4125 DY (thosiba)
TFB 4125 HY
C _ B+ _ 180 _ Gnd _ Nc _ 26v _ 12v _ Abl _ Heater _ Afc

BSC 22-01-06
BSC 25-48
BSC 25-4803
BSC 24-01N362
C _ B+ _ Nc _ afc _ gnd _ Heater _abl _ nc

BSC 24-01N4014K
BSC 25-T1010A
BSC 25-09N21A
BSC 25-05N2110A
BSC 25-09N20E
Tep _ C _ Tep _ B+ _ Tep _ Tep _ gnd _ Heater _ abl _ 180v

DCF 2217J
C _ B+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ heater

-BSC25-091N21A
-BSC25-05N2110A
-BSC25-09N20E0
-tep-C-tep-B+-tep-tep-gnd-Ht-ABL-180v

(POLYTRON) JF 0601-19577
c-b+-gnd-200v-nc-ht-nc-abl-12+-12-

(POLYTRON) FCK 14A0060
FCM 2015 HE
FCM 14A032
c-b+-abl-24v-heater-16v-180v-gnd-nc-abl

(POLYTRON) FCM-20B061N
c-b+-gnd-185-nc-ht-nc-abl-12+-12-

(AKARI) FUV 20C009
c-180v-b+-gnd-nc-24v-nc-abl-ht-AFC

(PANASONIC) TLF 4N052
TLF 15644FI
TLF 4G50 3F
c-B+-nc-24v-heater-180v-gnd-AFC-16v

(GOLD STAR) 154 064 P
154 177B
FCK 14B047
c-180-b+-gnd-16v-24v-40v-abl-ht-AFC

(SHARP)
FO101KM-SA
FO102KM-SA
F094
FO141PE-M
FAO61WJ-SA
FA060WJ-SA
FO147
FA135
FO193PEN1-SA
FA093WJ-SA
BSC-250216F
c-B+-gnd-24V-16V-afc-1

154-177B (goldstar21″)
FCK-14B047 (akari14″)
c _ 180v _ b+ _ gnd _ 16v _ 24v _ 40v _ abl _ htr _ afc.

6174Z-8005C (LG 20″)
c – 180 – b+ – gnd – nc – 24 – gnd – abl – ht -afc.

154-064G (goldstar14″)
154-177E untk (goldstar20″)
c – 180v – b+(92v) – boost up – 24v – 12v – gnd – abl – htr – afc.

154 – 132A (intel)
154 – 132C
6174V – 600H (LG 21″)
6174Z – 6040C (LG 21″)
BSC 23 – N0107 (LG 14″)
c _ 40v _ 16,5 _ htr _ gnd _ b+ _ 180v _ gnd _ abl _ 40v

154 189 C
154 189 H
154 277 C
BSC 22-2314 H
CF 0801-3701
FCM 20B027
c _ b+ _ 180v _ 16v _ 24v _ htr _ gnd _ abl _ afc _ nc.

6174V-6002U (LG 21″)
BSC 26-N2121(N) (LG 21″)
c – 180v – b+ – gnd – 12v – 26v – nc – abl – ht – afc

BSC 65 A (changhong)
c _ b+ _ 190v _ gnd _ nc _ nc _ 14,5v _ abl _ htr _ afc.

BSC 22-01N401
BSC 22-01N402
BSC 22-01-06
BSC 22-0201
BSC 22-2314B
BSC 23-4404A
BSC 23-14H
BSC 24-14L
BSC 24-01N36
BSC 24-01N362
BSC 24-01N362B
BSC 24-08A
BSC 24-09G
BSC 25-48
BSC 25-4803
BSC 25-4803F
BSC 25-4803T
BSC 25-N0803A
BSC 25-Z601A
c _ b+ _ nc _ afc _ gnd _ htr _ abl _ nc.

BSC 25-2678S (konka K2169TC)
c _ 200v _ b+ _ gnd _ afc _ 16v _ abl _ ht _ nc _ nc

BSC 24-01N4014K (china)
BSC 25-01N4010GA (14″)
BSC 25-05N2110A
BSC 25-0909
BSC 25-09N20E
BSC 25-09N21A
BSC 25-1003A
BSC 25-1194D024 (14″)
BSC 25-2108A
BSC 25-4813P (cina multy)
BSC 25-N1003A-4-R (21″)
BSC 25-T1010A
BSC 25-Z603F (21″)
BSC 26-0221 (29″)
Tep _ c _ tep _ b+ _ tep _ tep _ gnd _ htr _ abl _ 180v.

DCF 2217 J
c _ b+ _ afc _ boost-up _ 16,5 _ 24 _ abl _ gnd _ 200v _ htr.

F 0101 KM-SA (sharp 14R20 14″)
F 0102 KM-SA (sharp 20R20B, 20R200, 51R200)
F 0141 PE-M
F 0147
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ gnd _ ht _ abl

F 0122 PE-M (sharp 20Q250)
c _ b+ _ 24V _ 16V _ nc _ afc _ gnd _ ht _ 180V _ abl

F 0193 PEN1-SA (sharp 14U15)
c _ b+(115) _ gnd _ 40V _ 12V _ afc _ 180V _ gnd _ ht _ abl

F 0194 PEN1-SA (sharp 20R200MKII, 51U200, 20W200)
F 2037 PE-B (sharp 20AG2-S)
c _ b+ _ gnd _ 40V _ 16V _ afc _ 180V _ gnd _ ht _ abl

F 094
FA 061 WJ-SA (sharp 51X200)
c _ b+(130V) _ gnd _ 24V _ 12V _ afc _ 185V _ gnd _ ht _ abl

FA 113 WJ-B (sharp 51DXF250E)
c _ b+ _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl

FA 122 WJ-B
c _ b+(130V) _ gnd _ 24V _ nc _ afc _ 180V _ gnd _ ht _ abl

FA 011 WJ-B (sharp)
c _ b+ _ gnd _ 24V _ 16V _ afc _ 180V _ nc _ ht _ abl

FA 060 WJ-SA (sharp 14S20MKII)
c _ b+ _ gnd _ nc _ 12V _ afc(-12V) _ 180V _ gnd _ ht _ abl

FCG 2045 BL
afc – 16,5v _ htr _ boost-up _ B+83v _ gnd _ nc _ c _ abl _ 175v _ 24v

FCK 1411 L 01
FCM 14A025
c _ boost-up _ abl _ b+ _ gnd _ 180v _ 24V _ htr _ afc _ 16,5v.

FCK 14A006 (14″)
FCM 2015HE (21″)
FCM 14A032 (21″)
FTK 21R002 (21″)
KFS 60844A (21″)
nc _ nc _ gnd _ 180 _ 15v _ ht _ 24 _ abl _ b+ _ c

FCM 14B014N (polytron 14″)
FCM 20B061N (polytron 21″)
c _ b+ _ gnd _ 185 _ nc _ htr _ nc _ abl _ +12 _ -12.

FUH29VH02 (polytron29)
c _ b+ _ gnd _ 185v _ nc(16v) _ htr _ nc _ abl(bcl) _ 12v _ 12v

FSV 20A001 (samsung)
FCK 14A033
FSV 14A001
c _ b+125v _ abl _ nc _ gnd _ 185 _ 46 _ htr _ nc _ 16,5

FTK-14A004P (samsung)
c _ b+125v _ abl _ nc _ gnd _ 180v _ 24v _ htr _ afc _ 16,5.

FUY-20C009 (akari)
c _ 180 _ b+ _ gnd _ nc _ 24 _ nc _ abl _ htr _ afc.

FCG 2045 BL
afc _ 16,5v _ htr _ boost-up _ b+83v _ gnd _ nc _ c _ abl _ 175v _ 24v.

HTF2904
c _ b+ _ 24v _ 16v _ gnd _ htr _ grnd _ afc _ nc _ 180v

FSA 16012M
DCF 2077A
DCF 1577
FSA 16012M
c _ b+ _ afc _ boost-up _ 16,5 _ abl _ 25v _ gnd _ 185v _ htr.

JF 0501-1206
c _ b+ _ 180v _ 16v _ 25v _ htr _ gnd _ abl _ afc _ nc.

JF 0601-19577 (polytron 21” MX5203R)
c _ b+ _ gnd _ 200v _ nc _ htr _ nc _ abl _ +12 _ -12.

JY 0301-0206 (china 29″)
c _ b+ _ nc _ afc _ gnd _ Htr _ abl _ tep _ tep _ tep

MC FBC-015
LCE CF0854
c _ b+ _ gnd _ afc _ 185 _ htr _ 25 _ 15 _ gnd _ abl.

8-598-858–00 (sony KV-PG21P70)
8-598-811
c _ b+135v _ 200v _ htr _ gnd _ -16,5(vertkl) _ Gnd(vertkl) _ +16,5(vertkl) _ nc _ abl

TFB 4125 DY (thosiba)
TFB 4125 HY
c _ b+ _ 180 _ gnd _ nc _ 26v _ 12v _ abl _ htr _ afc.

TLF 4N052
c _ b+115V _ nc _ 25V _ heater _ 180V _ gnd _ diground melalui R 1 ohm 2W. _ 16V. _ abl

ZTF N82014B (Panasonic 20/21″)
c _ b+140V _ nc _ +16V _ gnd _ htr _ gnd _ abl _ -16V _ 180V

Data Travo Flyback FA061WJ-SA

Koneksi : 12-3467-589-10

Fungsi : H>>B+130>>GND>>24>>12>>AFC>>180>>GND>>HT>>ABL

Digunakan Pada TV : Sharp



Data Travo Flyback 154-138L

Koneksi : 135-2-468910-7

Fungsi : 180V>>NC>>H>>AFC>>B+110>>45V>>ABL>>GND>>12V>>HT

Digunakan Pada TV : Solitron



Data Travo Flyback BSC24-01N4019L

No. Pin : 123456789

Fungsi : H>>B+110>>NC>>AFC>>GND>>HT>>ABL>>NP>>NC


Digunakan Pada TV : China Brand



Data Travo Flyback JF0501-1901

No. Pin : 12345678910

Fungsi : H>>B+110>>GND>>180>>HT>>ABL>>GND>>16>>NC>>26


Digunakan Pada TV : Akira



Data Travo Flyback BSC24-N40G1

No. Pin : 12345678910

Fungsi : H1_H_H2_B+110_H3_H4_GND_HT_ABL_AFC

Persamaan :   BSC24-01N4006EV BSC25-09N20E BSC25-T1010ABSC25-Z603F BSC24-01N4006EVR BCS28-2198

Digunakan Pada TV : China Brand



Data Travo Flyback BSC25-3504V

No. Pin : 123456789

Fungsi : H_B+110_NC_AFC_GND_HT_ABL_NP_180

Persamaan :   BSC22-0106 BSC25-05N1418 BSC25-05N2135C

Digunakan Pada TV : China Brand



Data Travo Flyback BSC24-09G

No. Pin : 123456789

Fungsi : H_B+110_NC_AFC_GND_HT_ABL_NP_NC

Digunakan Pada TV : China Brand



Data Travo Flyback BSC25-N0449

No. Pin : 12345678

Fungsi : H_B+110_26_AFC_GND_HT_ABL_180

Persamaan :   BSC22-68F03

Digunakan Pada TV : China Brand



Data Travo Flyback BSC22-68F03

No. Pin : 12345678

Fungsi : H_B+110_26_AFC_GND_HT_ABL_180

Persamaan :   BSC25-N0449

Digunakan Pada TV : China Brand



Data Travo Flyback FCM2014FL

No. Pin12345678910
Fungsi16AFCHT24180GNDBOSTABLB+110H

Digunakan Pada TV : Samsung

Persamaan :   FCM14A025



Data Travo Flyback FCM14A025

No. Pin12345678910
Fungsi16AFCHT24180GNDBOSTABLB+110H

Digunakan Pada TV : Samsung

Persamaan :   FCM2014FL



Data Travo Flyback JF0501-1914

No. Pin12345678910
Fungsi180HAFCB+1101224ABLGNDNCHT

Digunakan Pada TV : TCL

Persamaan :   BSC25-0231



Data Travo Flyback BSC25-0231

No. Pin12345678910
Fungsi180HAFCB+1101224ABLGNDNCHT

Digunakan Pada TV : TCL

Persamaan :   JF0501-1914



Data Travo Flyback BSC25-F1125A

No. Pin12345678910
FungsiH1HH2B+110H3H4GNDHTABLAFC

Digunakan Pada TV : China Brand

Persamaan :   BSC24-014001D BSC25-N0321 BSC25-N1534 BSC25-N1634 BSC25-Z1003 BSC25-Z2705 BSC25-Z2706 BSC25-N0313



Data Travo Flyback BSC25-N0313

No. Pin12345678910
FungsiH1HH2B+110H3H4GNDHTABLAFC

Digunakan Pada TV : China Brand

Persamaan :   BSC24-014001D BSC25-N0321 BSC25-N1534 BSC25-N1634 BSC25-Z1003 BSC25-Z2705 BSC25-Z2706 BSC25-F1125A



Data Travo Flyback BSC25-2678S

No. Pin12345678910
FungsiH180B+110GNDAFC12ABLHTNCNC

Digunakan Pada TV : Konka

Persamaan :   BCS25-N1603 BSC25-0113 BSC25-023D





Data Travo Flyback BSC25-023D

No. Pin12345678910
FungsiH180B+110GNDAFC12ABLHTNCNC

Digunakan Pada TV : Konka

Persamaan :   BCS25-N1603 BSC25-0113 BSC25-2678S



Data Travo Flyback BSC25-0113

No. Pin12345678910
FungsiH180B+110GNDAFC12ABLHTNCNC

Digunakan Pada TV : Konka

Persamaan :   BCS25-N1603 BSC25-023D BSC25-2678S



Data Travo Flyback BSC25-N0211

No. Pin123456789
FungsiHB+110H1AFCGNDHTABLH2H3

Digunakan Pada TV : China Brand

Persamaan :   BSC25-05N2120R



Data Travo Flyback TFB4125CH

No. Pin12345678910
FungsiHB+115185GNDNC2612ABLHTAFC

Digunakan Pada TV : Toshiba

Persamaan :   TFB4122BD



Data Travo Flyback BSC25-05N2135C

No. Pin12345678910
FungsiHB+11516AFCGNDHTABLNP180NP

Digunakan Pada TV : Akira

Persamaan :   BSC22-0106 BSC25-05N1418 BSC25-3504V



Data Travo Flyback FCM-20B061N

No. Pin12345678910
FungsiHB+110GND180NCHTNCABL12-12

Digunakan Pada TV : Polytron

Persamaan :   JF0601-19577



Data Travo Flyback JF0601-19577

No. Pin12345678910
FungsiHB+110GND180NCHTNCABL12-12

Digunakan Pada TV : Polytron

Persamaan :   FCM-20B061N



Data Travo Flyback DST2010-D91

No. Pin12345678910
FungsiHB+110GNDNC180HTNCABL12-12

Digunakan Pada TV : Polytron



Data Travo Flyback BCS28-2198

No. Pin12345678910
FungsiH1HH2B+110H3H4GNDHTABL180

Digunakan Pada TV : China

Persamaan :   BSC24-01N4006EV BSC25-09N20E BSC25-T1010ABSC25-Z603F BSC24-01N4006EVR BSC24-N40G1



Data Travo Flyback 6174Z-6238L

No. Pin12345678910
FungsiH200B+140GND13-1328ABLHTAFC

Digunakan Pada TV : LG

Persamaan :   154-177B 154-064P FCK-14B047 JF0501-1206 JF0501-91802



Data Travo Flyback 6174Z-6005U

No. Pin12345678910
FungsiHB+12014-1420428NCABLHTNC

Digunakan Pada TV : LG



Data Travo Flyback 6174V-6006V

No. Pin12345678910
FungsiH180B+110GNDNC24NCABLHTAFC

Digunakan Pada TV : LG





Data Travo Flyback 154-374A

No. Pin12345678910
FungsiH200B+125GND162645ABLHTAFC

Digunakan Pada TV : LG

Persamaan :   154-177B 154-064P FCK-14B047 JF0501-1206 JF0501-91802 6174Z-6238L



Data Travo Flyback JF0501-91802

No. Pin12345678910
FungsiH180B+130GNDNC24NCABLHTNC

Digunakan Pada TV : China

Persamaan :   154-177B 154-064P FCK-14B047 JF0501-1206 154-374A 6174Z-6238L



Data Travo Flyback BCS25-4004U

No. Pin12345678910
FungsiHH1H2GNDNC12.5B+140ABLHTAFC

Digunakan Pada TV : China



Data Travo Flyback BCS25-N1603

No. Pin12345678910
FungsiH180B+108GNDAFC12.5ABLHTNPNP

Digunakan Pada TV : Konka

Persamaan :   BSC25-0113 BSC25-023D BSC25-2678S

Data Travo Flyback FCM-21A004



No. Pin12345678910
FungsiHB+110NC195AFCABLGND14NC24

Digunakan Pada TV : China

Data Travo Flyback BSC23-N0121



No. Pin12345678910
FungsiH180B+110GND1226NCABLHTAFC

Digunakan Pada TV : LG

Persamaan :   6174V-6006H 6174V-6006E



Data Travo Flyback 6174V-6006E



No. Pin12345678910
FungsiH180B+110GND1226NCABLHTAFC

Digunakan Pada TV : LG

Persamaan :   6174V-6006H BSC23-N0121

Data Travo Flyback 6174V-6006H



No. Pin12345678910
FungsiH180B+110GND1226NCABLHTAFC

Digunakan Pada TV : LG

Persamaan :   6174V-6006E BSC23-N0121

Data Travo Flyback FA137WJZZ



No. Pin12345678910
FungsiHB+130GND24NCAFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   BSC25-0217B

Data Travo Flyback BSC25-0217B



No. Pin12345678910
FungsiHB+130GND24NCAFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   FA137WJZZ

Data Travo Flyback L40B9001



No. Pin12345678910
FungsiHB+130NCAFCGNDHTGNDABLNC180

Digunakan Pada TV : Sanyo

Persamaan :   L40B05500Data Travo Flyback L40B05500



No. Pin12345678910
FungsiHB+130NCAFCGNDHTGNDABLNC180

Digunakan Pada TV : Sanyo

Persamaan :   L40B9001

Data Travo Flyback FCM14A032



No. Pin12345678910
FungsiNCNCGND18015HT24ABLB+110H

Digunakan Pada TV : Polytron

Persamaan :   FCK14A006 FCM2015HE

Data Travo Flyback FCM2015HE

No. Pin12345678910
FungsiNCNCGND18015HT24ABLB+110H

Digunakan Pada TV : Polytron

Persamaan :   FCK14A006 FCM14A032

Data Travo Flyback FCK14A006



No. Pin12345678910
FungsiNCNCGND18015HT24ABLB+110H

Digunakan Pada TV : Polytron

Persamaan :   FCM2015HE FCM14A032

Data Travo Flyback JF0501-1206



No. Pin12345678910
FungsiHB+1151801624HTGNDABLAFCNC

Digunakan Pada TV : Sansui

Persamaan :   154-177B 154-064P FCK-14B047 JF0501-91802 154-374A 6174Z-6238L

Data Travo Flyback FSA16012M



No. Pin12345678910
FungsiHB+103AFCBost-Up1624ABLGND180HT

Persamaan :   DCF-2077D DCF-2077A DCF-1577



Data Travo Flyback DCF-1577



No. Pin12345678910
FungsiHB+103AFCBost-Up1624ABLGND180HT

Persamaan :   DCF-2077D DCF-2077A FSA16012M



No. Pin12345678910
FungsiHB+103AFCBost-Up1624ABLGND180HT

Digunakan Pada TV : Solidtron

Persamaan :   DCF-2077A DCF-1577 FSA16012M

Data Travo Flyback F0141PE-M



No. Pin12345678910
FungsiHB+115GND2412AFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   F0194PEN1-SA F0193PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F0102KM F02299PE-B

Data Travo Flyback FCK-14B047



No. Pin12345678910
FungsiHC180B+110GND122440ABLHTAFC

Digunakan Pada TV :

Persamaan :   154-177B 154-064P JF0501-1206 JF0501-91802 154-374A 6174Z-6238L

Data Travo Flyback TFB4122BD



No. Pin12345678910
FungsiHB+115185GNDNC2612ABLHTAFT

Digunakan Pada TV : Toshiba

Persamaan :   TFB4125CH

Data Travo Flyback BSC24-01N40K



No. Pin12345678910
FungsiHNCB+110GNDAFCNCABLHTNCNC

Digunakan Pada TV : China Brand

Data Travo Flyback 2435521



No. Pin12345678910
FungsiHGND25200B+110HTABL14NCNC

Digunakan Pada TV : Hitachi

Data Travo Flyback BSC25-N3604



No. Pin12345678910
FungsiHB+110NCAFCGNDHTABLNPH1H2

Digunakan Pada TV : China Brand

Data Travo Flyback TLF4G503F



No. Pin12345678910
FungsiHB+90NC24HT185GNDAFC16ABL

Digunakan Pada TV : Panasonic

Persamaan :   TLF15644F1 TLF4N052

Data Travo Flyback TLF4N052



No. Pin12345678910
FungsiHB+90NC24HT180GNDAFC16ABL

Digunakan Pada TV : Panasonic

Persamaan :   TLF15644F1 TLF4G503F



Data Travo Flyback F02299PE-B



No. Pin12345678910
FungsiHB+110GNDNC24AFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   F0194PEN1-SA F0193PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F0102KM F0141PE-M

Data Travo Flyback F0102KM



No. Pin12345678910
FungsiHB+115GND2412AFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   F0194PEN1-SA F0193PEN1-SA F0147PE-M BCS21-2647 F0101KM-SA F02299PE-B F0141PE-M

Data Travo Flyback F0101KM-SA



No. Pin12345678910
FungsiHB+115GND2412AFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   F0194PEN1-SA F0193PEN1-SA F0147PE-M BCS21-2647 F0102KM F02299PE-B F0141PE-M

Data Travo Flyback BSC24-08B



No. Pin12345678910
FungsiHB+110NCAFCGNDHTABLNPNCNP

Digunakan Pada TV : China Brand

Persamaan :   BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09GBSC25-4803T BSC25-N1617 BSC25-Z601F BSC24-01N4019L

Data Travo Flyback BSC25-Z601F



No. Pin12345678910
FungsiHB+110NCAFCGNDHTABLNPNCNP

Digunakan Pada TV : China Brand

Persamaan :   BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09GBSC25-4803T BSC25-N1617 BSC24-08B BSC24-01N4019L

Data Travo Flyback BSC25-N1617

No. Pin12345678910
FungsiHB+110NCAFCGNDHTABLNPNCNP

Digunakan Pada TV : China Brand

Persamaan :   BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09GBSC25-4803T BSC25-Z601F BSC24-08B BSC24-01N4019L



Data Travo Flyback BSC25-4803T

No. Pin12345678910
FungsiHB+110NCAFCGNDHTABLNPNCNP

Digunakan Pada TV : China Brand

Persamaan :   BSC23-01N16 BSC23-01N16 BSC24-01N36 BSC24-09GBSC25-N1617 BSC25-Z601F BSC24-08B BSC24-01N4019L



Data Travo Flyback FSV-14A004C

No. Pin12345678910
Fungsi16.5NCHT-16.5185GNDNCABLB+125H

Digunakan Pada TV : Samsung

Persamaan :   FOK14A001 AA26-002101A



Data Travo Flyback FSV20A099

No. Pin12345678910
Fungsi1524HT45180GNDNCABLB+125H

Digunakan Pada TV : Sanken



Data Travo Flyback F0147PE-M

No. Pin12345678910
FungsiHB+115GND2412AFC180GNDHTABL

Digunakan Pada TV : Sharp

Persamaan :   F0194PEN1-SA F0193PEN1-SA BCS21-2647F0101KM-SA F0102KM F02299PE-B F0141PE-M



Data Travo Flyback F0193PEN1-SA
No. Pin : 12345678910
Fungsi : H_B+115_GND_45_12_AFC_180_GND_HT_ABL

Persamaan :   F0194PEN1-SA F0147PE-M BCS21-2647 F0101KM-SAF0102KM F02299PE-B F0141PE-MDigunakan Pada TV : Sharp



Data Travo Flyback FOK14A001
No. Pin : 12345678910
Fungsi : 16.5_NC_HT_-16.5_200_GND_NC_ABL_B+130_H

Persamaan :   AA26-002101A FSV-14A004CDigunakan Pada TV : Samsung



Data Travo Flyback 154-177B

No. Pin : 12345678910

Fungsi : H_180_B+110_GND_122_440_ABL_HT_AFC

Persamaan :   154-064P FCK-14B047 JF0501-1206 JF0501-91802 154-374A 6174Z-6238LDigunakan Pada TV : Goldstar



Data Travo Flyback TLF15644F1

No. Pin : 12345678910

Fungsi : H>>B+90>>NC>>24>>HT>>185>>GND>>GND>>16>>ABL

Digunakan Pada TV : Panasonic

Persamaan :   TLF4N052 TLF4G503F

Source : Dari berbagai sumber
Tags

Tampilkan selengkapnya


Bagikan ke aplikasi lainnya
Copy Post Link
